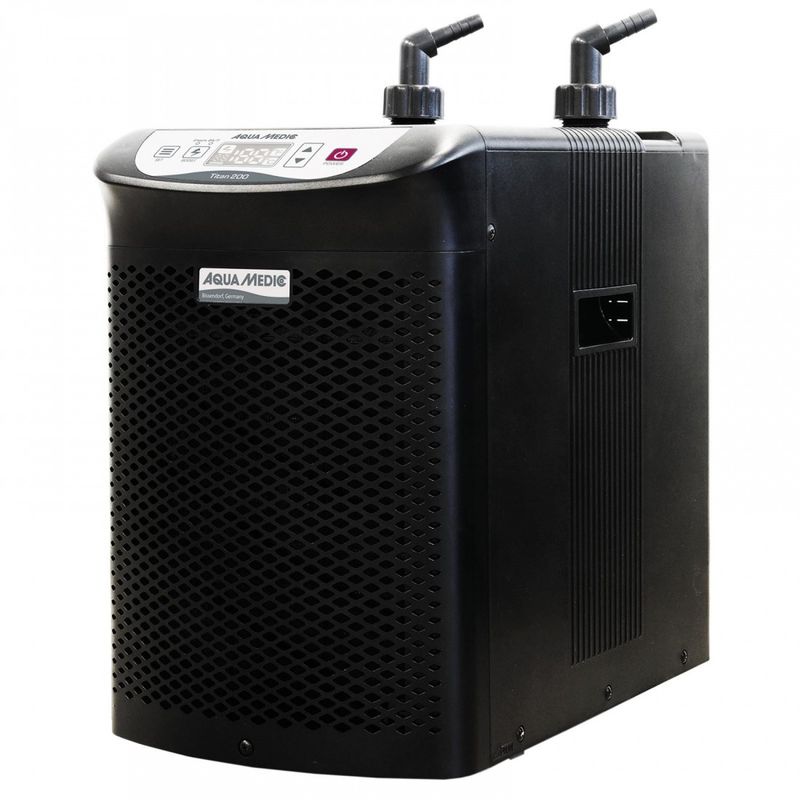

The Titan series heat exchangers are made of pure, saltwater resistant titanium. Titan coolers are suitable for use in freshwater or saltwater aquariums.

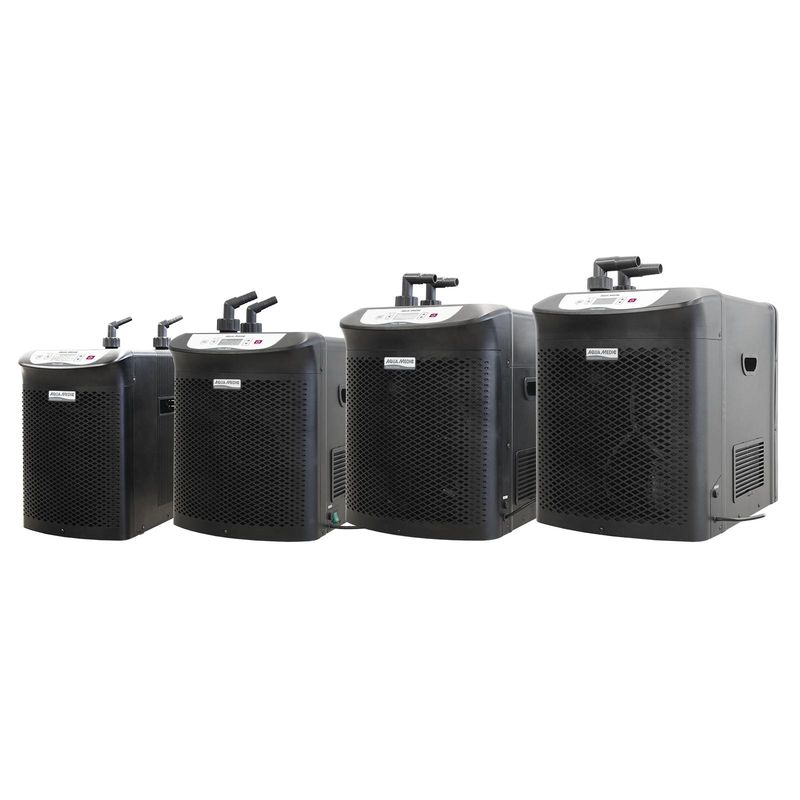

Titan coolers are available in 4 different sizes. In a small aquarium up to an aquarium of 2500 l you can maintain a constant temperature of 24 °C - 27 °C. A digital temperature controller ensures that the set temperature is precisely controlled. The control range is from 3 °C to 32 °C.
The Aqua Medic cooling units of the Titan series are equipped with the environmentally friendly refrigerant R 134 A. All cooling units have a solid PVC/ABS housing in a timeless design, so that the cooling units will not look out of place next to an aquarium in the living room.
Characteristics
- Simple and convenient operation with a microcomputer controlled system
- High efficiency and economy due to the rapidly falling water temperature
- The use of titanium heat exchangers ensures long-term corrosion-free operation and service life
- High level of protection for animals and plants through permanent automatic
water temperature adjustment - Easy installation, fittings included
- Sturdy housing in stylish design made of PVC/ABS
Specifications
| Type | 200 | 600 | 1600 | 2200 |
| For aquariums up to (l) | 250 l | 750 l | 1,500 l | 2,500 l |
| Compressor power (hp) | 0.1 | 0.25 | 0.5 | 1 |
| Voltage | 220 - 240V / 50Hz | |||
| Power consumption (watts) | 160 | 345 | 480 | 550 |
| Cooling power (watts) | 200 | 600 | 800 | 1600 |
| Recommended water flow (l/h) approx. | 250-1200 | 1000-2500 | 1200-3000 | 1500-4000 |
| Hose connections | 1/2" or 5/8" | 3/4" | 3/4" or 1" | 1" or 1 1/4" |
| Hysteresis | 1° | |||
| Housing material | PVC/ABS | |||
| Heat exchanger | Titan | |||
| refrigerant gas | R134a | |||
| Dimensions mm (lxwxh) approx. | 430x255x380 | 457x330x430 | 480x355x480 | 560x380x480 |
| Weight | 13 | 18.6 | 19.3 | 19.8 |
